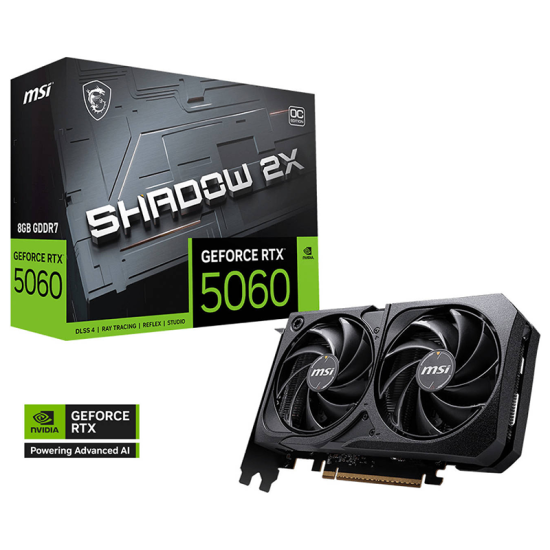

GeForce RTX™ 5060 8G SHADOW 2X OC



GeForce RTX 50 Series - Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.



• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks: Extreme Performance: 2535 MHz (MSI Center), Boost: 2527 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.



Specifications



Marketing Name	GeForce RTX™ 5060 8G SHADOW 2X OC
Model Name	G5060-8S2C
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5060
Interface	PCI Express® Gen 5 x16 (uses x8)
Core Clocks	Extreme Performance: 2535 MHz (MSI Center), Boost: 2527 MHz
CUDA® Cores	3840 Units
Memory Speed	28 Gbps
Memory	8GB GDDR7
Memory Bus	128-bit
Output	DisplayPort x3 (v2.1b), HDMI™ x1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Yes
Power Consumption	145 W
Power Connectors	8-pin x1
Recommended PSU	550 W
Card Dimension (mm)	197 x 120 x 40 mm
Weight (Card / Package)	493 g / 814 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® Technology	Yes
Digital Maximum Resolution	7680 x 4320
