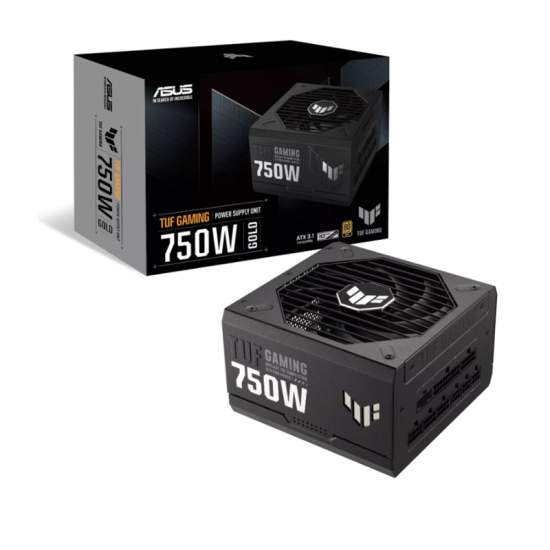

ASUS TUF Gaming 750W Fully Modular Power Supply, 80 PLUS Gold Efficiency

TUF Gaming 750W Gold



Power your gaming rig with the reliability and performance of the ASUS TUF Gaming 750W Fully Modular Power Supply. Built for endurance, this PSU delivers 80 PLUS Gold certified efficiency with military-grade components, ensuring stable, clean power for high-performance gaming PCs.

The TUF Gaming 750W PSU features dual ball fan bearings and Axial-Tech fan design for superior cooling and longer lifespan—up to twice the durability of conventional designs. With fully modular cables, you can enjoy a cleaner build and improved airflow inside your case.

Engineered for long-lasting reliability, it’s equipped with Active PFC, high-quality capacitors, and comprehensive protection features (OVP, UVP, SCP, OPP, OTP) to safeguard your components during intense gaming sessions.

---

Key Features

• 750W Power Output – Ideal for gaming PCs with powerful GPUs and CPUs.

• 80 PLUS Gold Efficiency – Delivers high energy efficiency and reduced heat.

• Military-Grade Components – Built for stability and long-term reliability.

• Axial-Tech Fan Design – Larger blades and optimized airflow for quiet cooling.

• Dual Ball Fan Bearings – Longer lifespan than traditional sleeve bearings.

• Fully Modular Design – Use only the cables you need for a clean build.

• Comprehensive Protection – Includes OVP, UVP, SCP, OPP, and OTP safety features.

---

Specifications

• Model: 90YE00S3-B0NA00

• Power Output: 750W

• Efficiency Rating: 80 PLUS Gold

• Form Factor: ATX12V

• Cooling: 135mm Axial-Tech Fan with Dual Ball Bearings

• Modularity: Fully Modular

• PFC: Active PFC

• Protections: OVP / UVP / SCP / OPP / OTP

• Color: Black

The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.





Specifications



Intel Form Factor	ATX12V
PFC Type	Active PFC
ATX Standard	ATX 3.0
Dimensions	150 x 150 x 86 mm
Efficiency	80Plus Gold
MTBF	>120,000 hrs @ 40°C
Protection Features	OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials	ROHS
AC Input Range	100-240Vac
DC Output Voltage	+3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load	25A, 25A, 62A, 0.8A, 3A
Combined Load	130W, 130W, 744W, 9.6W, 15W
Total Output	750W
Cable Connectors	MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1, PCI-E 8-pin x 3, SATA x 5, PERIPHERAL x 4
Package Contents	Power Cord x 1, Motherboard Power Cable x 1 (610mm), CPU Cable x 2 (650mm), PCI-E Gen 5 16-pin Cable x 1 (675mm), PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm), PCI-E 1-to-1 Cable x 1 (675mm), SATA 1-to-2 Cable x 1 (400+120mm), SATA 1-to-3 Cable x 1 (400+120+120mm), Peripheral 1-to-4 Cable x 1 (400+150+150+150mm), TUF Gaming Cable Tie x 3, User Manual x 1
Weight	2.38kg (single PSU)
0dB Technology	Supported. The fan shuts off entirely under certain load
0dB Fan Button	No. The product operates in 0dB mode by default; the fan spins up only at a certain load
