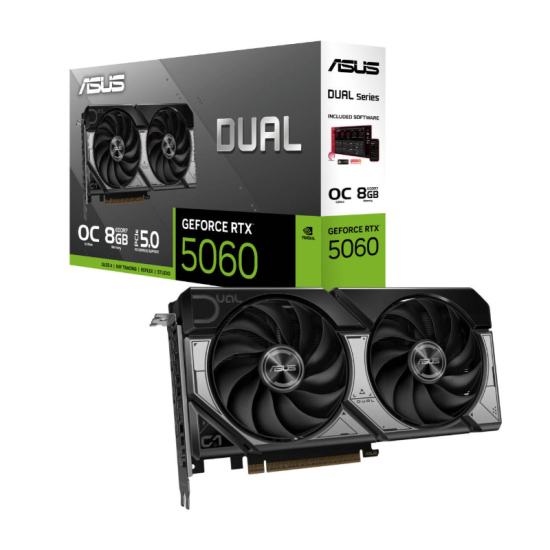

ASUS Dual GeForce RTX 5060 OC Edition 8GB GDDR7 Graphics Card | DUAL-RTX5060-O8G | 90YV0N12-M0NA00

Description

The ASUS Dual GeForce RTX 5060 OC Edition is a compact performance-focused graphics card powered by the NVIDIA GeForce RTX 5060 GPU. It combines 3,840 CUDA cores, 8GB of GDDR7 memory, a 128-bit memory interface, and 28Gbps memory speed with ASUS's factory-overclocked dual-fan cooling design.

Designed for modern gaming, content creation, and GPU-accelerated applications, the card operates at a 2535MHz default boost clock, with an OC Mode clock of up to 2565MHz. It uses the PCI Express 5.0 interface and offers modern HDMI 2.1b and DisplayPort 2.1b connectivity.

Key Features

NVIDIA GeForce RTX 5060

• NVIDIA GeForce RTX 5060 GPU
• 3,840 CUDA cores
• 614 TOPS rated AI performance
• Modern NVIDIA RTX architecture
• Designed for high-performance gaming and creative workloads
• Hardware-accelerated ray tracing and AI-powered graphics capabilities

ASUS officially specifies 3,840 CUDA cores and 614 TOPS of AI performance for the DUAL-RTX5060-O8G.

8GB High-Speed GDDR7 Memory

• 8GB GDDR7 VRAM
• 128-bit memory interface
• 28Gbps memory speed
• High-bandwidth next-generation graphics memory
• Suitable for modern games, high-resolution textures, and creative applications

Factory Overclocked Performance

• Default Mode: 2535MHz Boost Clock
• OC Mode: Up to 2565MHz
• Factory-overclocked ASUS OC Edition
• Additional tuning available through ASUS GPU Tweak III

The advertised 2565MHz figure refers specifically to the card's OC Mode.

Dual-Fan Cooling Design

The ASUS Dual series uses a compact dual-fan configuration designed to balance cooling performance with compatibility in smaller PC cases.

Key benefits include:

• Dual cooling fans
• Compact graphics-card dimensions
• Efficient GPU cooling
• Suitable for space-conscious gaming builds
• 2.5-slot form factor
• Designed to provide strong airflow without requiring an oversized triple-fan cooler

NVIDIA RTX Gaming Features

As part of NVIDIA's GeForce RTX 50 Series, the RTX 5060 platform is designed to support modern RTX technologies for compatible games and applications, including:

• Hardware-accelerated ray tracing
• AI-enhanced rendering
• DLSS technologies
• Frame-generation technologies
• NVIDIA Reflex
• NVIDIA Broadcast
• Game Ready Drivers
• NVIDIA Studio Drivers

Availability and performance of individual features depend on the game, application, driver, and system configuration.

Display Connectivity

The ASUS Dual RTX 5060 OC provides four modern display outputs:

• 1 × HDMI 2.1b
• 3 × DisplayPort 2.1b
• Up to 4 displays simultaneously
• HDCP 2.3 support
• Maximum digital resolution up to 7680 × 4320

This makes the card suitable for high-resolution gaming monitors as well as multi-monitor desktop configurations.

Specifications

• Brand: ASUS
• Series: ASUS Dual
• Product Name: Dual GeForce RTX 5060 8GB GDDR7 OC Edition
• Model: DUAL-RTX5060-O8G
• Part Number: 90YV0N12-M0NA00
• GPU: NVIDIA GeForce RTX 5060
• CUDA Cores: 3,840
• AI Performance: 614 TOPS
• Video Memory: 8GB GDDR7
• Memory Interface: 128-bit
• Memory Speed: 28Gbps
• Default Boost Clock: 2535MHz
• OC Mode Clock: 2565MHz
• Bus Interface: PCI Express 5.0
• OpenGL: OpenGL 4.6
• Maximum Digital Resolution: 7680 × 4320
• HDMI: 1 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1b
• HDCP: 2.3
• Maximum Displays: 4
• Cooling: Dual-Fan
• Slot Size: 2.5-Slot
• Power Connector: 1 × 8-Pin
• Recommended PSU: 550W
• Dimensions: 228 × 123 × 50 mm
• Software: ASUS GPU Tweak III
• NVLink / CrossFire: No

Compact 2.5-Slot Design

The card measures:

228 × 123 × 50 mm

Its relatively compact 228mm length makes it easier to accommodate in many gaming cases than larger triple-fan graphics cards, while the cooler occupies 2.5 expansion slots.

Always check your PC case's GPU length, thickness, and component clearance before purchasing.

Power Requirements

ASUS specifies:

• Recommended PSU: 550W
• GPU Power Connector: 1 × 8-Pin

The conventional 8-pin power connection can simplify installation in systems using compatible existing power supplies. ASUS notes that its 550W recommendation is based on a fully overclocked GPU and CPU configuration, so actual PSU requirements can vary according to the complete system.

Multi-Monitor Support

With three DisplayPort connections and one HDMI connection, the card supports up to four simultaneous displays.

This makes it suitable for:

• Gaming monitor setups
• Dual-monitor workstations
• Triple-monitor configurations
• Streaming setups
• Video-editing workstations
• Productivity and content creation

ASUS specifies a maximum digital resolution of 7680 × 4320.

ASUS GPU Tweak III

The card supports ASUS GPU Tweak III, allowing compatible systems to monitor and adjust graphics-card settings such as:

• GPU clock behavior
• Performance profiles
• Fan settings
• GPU monitoring
• Temperature monitoring
• Performance statistics

ASUS also provides support for NVIDIA Game Ready Drivers and Studio Drivers.

What's in the Box

• ASUS Dual GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card
• SpeedSetup Manual
• Thank You Card

ASUS lists GPU Tweak III, Game Ready Drivers, Studio Drivers, and related software as downloads rather than physical items included in the package.

Best For

• 1080p High-Refresh Gaming
• 1440p Gaming
• Ray-Traced Gaming
• Esports Gaming
• Gaming PCs
• Compact PC Builds
• Content Creation
• Streaming
• AI-Accelerated Applications
• Multi-Monitor Workstations

Why Choose the ASUS Dual GeForce RTX 5060 OC Edition?

• 3,840 CUDA cores provide modern NVIDIA GPU performance for gaming and accelerated applications.
• 8GB of 28Gbps GDDR7 memory provides next-generation graphics memory in a compact mainstream gaming card.
• The factory-overclocked design reaches up to 2565MHz in OC Mode, compared with its 2535MHz default boost clock.
• PCI Express 5.0 provides a modern interface for current-generation PC platforms.
• HDMI 2.1b and three DisplayPort 2.1b outputs provide flexible connectivity for modern gaming monitors and multi-display configurations.
• The relatively compact 228mm dual-fan, 2.5-slot design can fit into a wider range of PC cases than many larger graphics cards.
• A standard single 8-pin power connector simplifies installation, while ASUS recommends a 550W power supply for the card.
