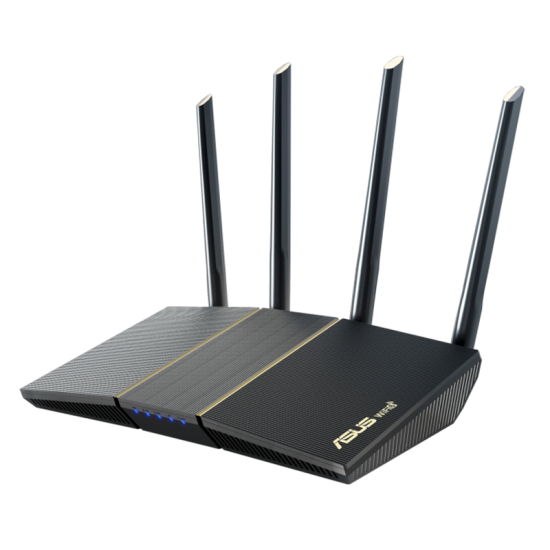

ASUS RT-AX57 AX3000 WiFi 6 Router Black | 90IG06Z0-MU2C00

• New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.
• Ultra-fast WiFi Speed – RT-AX57 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously.
• Commercial-grade Security Anywhere – Protect your home network with AiProtection Classic, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click secure VPN.
• Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

BSS Coloring Boosts Connection Efficiency

The Latest WPA3 Network Security

The next generation of WiFi security, bringing new capabilities to enhance WiFi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify WiFi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.



More Privacy, Anywhere

Free public WiFi is rarely secure. Thanks to Instant Guard VPN technology, you can surf on public WiFi network safely through RT-AX57 with one-click setup. In addition, it’s free!



Flexible and Scalable Wireless Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!





The Way You Want, Easy Control

Download the latest ASUS Router App. With graphic icons and clear instructions, You can easily start RT-AX57 and setup dedicated functions as you want.





Specifications



Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4GHz 2x2
5GHz 2x2

Processor

1.7GHz quad-core processor

Memory

128 MB Flash 256 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1 2.4G x 1 5G x 1 LAN x 1 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1.5 A current

Product Weight (g)

374g

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

ASUS Router APP

Alexa

Support Alexa skill

AiProtection

AiProtection Classic
Malicious site blocking
Infected Device Prevention and Blocking

Parental Control

Parental Control
Parental Control Customized Internet schedule

Traffic Control

Bandwidth limiter
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor

Wireless

IPv6
Wi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
WPS
WiFi MAC address filter
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS
Let's Encrypt

LAN

DHCP Server
IPTV
Manually assign IP address

VPN

VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

Administration

Operating mode : Access Point, AiMesh Node, Media Bridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade
Firewall
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
