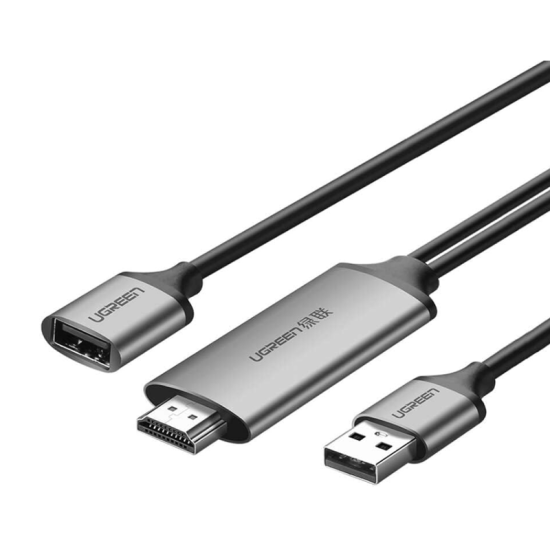

UGREEN CM151 50291 USB-to-HDMI Digital AV Adapter 1.5M – 1080p@60Hz Mobile Screen Mirroring for iOS, Android, Windows & macOS – Gray

Description

The UGREEN CM151 50291 is a software-assisted USB-to-HDMI Digital AV adapter designed to mirror video from a compatible smartphone, tablet, or computer onto an HDMI television, monitor, or projector.

Unlike a conventional USB-C-to-HDMI cable, it uses a USB-A female input for the source device’s USB data cable. A separate USB-A male lead supplies power, while the integrated HDMI male connector connects to the display.

It supports video resolutions up to Full HD 1920 × 1080 at 60Hz and can work with compatible USB-C, Micro-USB, or Lightning devices through their appropriate USB data cables.

Key Features

• USB-to-HDMI Digital AV adapter
• USB-A female source connection
• Integrated HDMI Type-A male output
• Separate USB-A male power connector
• Supports Full HD 1080p at 60Hz
• USB 2.0 data rate up to 480Mbps
• Compatible with selected iOS devices
• Compatible with selected Android devices
• Compatible with supported Windows and macOS computers
• Works with USB-C, Micro-USB, or Lightning data cables
• Software-assisted EZCast screen mirroring
• Aluminum-alloy adapter housing
• Flexible PVC cable construction
• Main cable length: 1.5M
• Power-cable length: approximately 1M
• Color: Gray
• Model: CM151
• SKU: 50291
• EAN: 6957303852918

Full HD 1080p Output

The UGREEN 50291 supports video output up to Full HD 1920 × 1080 at 60Hz.

*The actual output depends on the source device, operating system, application, USB data connection, and receiving display.

How the Adapter Works

The adapter uses three separate connections:

1. USB-A female input: Connects to the phone, tablet, or computer using its compatible USB data cable.
2. HDMI male output: Connects directly to the television, monitor, or projector.
3. USB-A male power lead: Connects to a stable 5V USB power source.

Connection example:

Smartphone → phone’s USB data cable → UGREEN 50291 → HDMI display

The adapter’s separate USB-A power lead must also be connected during operation.

Software-Assisted Screen Mirroring

The UGREEN 50291 uses a software-assisted casting system rather than native USB-C DisplayPort Alt Mode.

EZCast software is required for supported Android devices and may also be required for Windows or macOS systems. The user may need to grant:

• Screen-recording permission
• USB device access
• Screen-sharing permission
• Application overlay permission
• Local-network access, depending on the software version

Compatibility depends on continued support from the operating system and EZCast application.

USB-C, Micro-USB and Lightning Support

The USB-A female input can accept the source device’s appropriate USB data cable, including:

• USB-A to USB-C
• USB-A to Micro-USB
• USB-A to Lightning

These cables are normally supplied separately.

This design can work with certain devices that do not provide native DisplayPort Alt Mode, but the device and operating system must be supported by the EZCast software.

USB 2.0 Data Connection

The adapter uses a USB 2.0 connection with a listed maximum data-transfer rate up to 480Mbps.

This bandwidth is used by the casting system to send the mirrored video to the adapter. It is not comparable to the bandwidth of a direct HDMI 2.0 or USB-C DisplayPort connection.

Because the picture is processed through USB and software, some delay or compression may be visible.

Video-Only Output

Exact UGREEN documentation for SKU 50291 states that the adapter transmits video only and does not provide HDMI audio.

For sound, use a separate audio connection such as:

• The phone or tablet’s built-in speaker
• Bluetooth headphones
• A Bluetooth speaker
• A compatible wired audio output
• The computer’s separate audio output

Do not purchase this model if HDMI audio transmission is required.

Suitable Uses

The adapter is suitable for:

• Displaying photographs on a television
• Basic video presentations
• Classroom demonstrations
• Showing documents on a projector
• Mirroring mobile applications
• Displaying web pages on a larger screen
• Basic office presentations
• Viewing locally stored media where the application permits mirroring

Because software processing can introduce latency, it is not ideal for competitive gaming or other delay-sensitive applications.

Compatibility

Compatible device categories can include:

• iPhones using an appropriate Lightning cable
• iPads
• Android smartphones
• Android tablets
• Samsung devices
• Huawei devices
• Xiaomi devices supported by the application
• HTC devices
• USB-C mobile devices
• Micro-USB mobile devices
• Windows computers
• macOS computers

Listed minimum operating-system versions include:

• iOS 9.0 or later
• Android 5.0 or later

Modern operating-system compatibility should be checked before purchase because application permissions and screen-mirroring policies can change.

Display Compatibility

The integrated HDMI male connector can connect to compatible:

• HDTVs
• Full HD televisions
• HDMI monitors
• Projectors
• Presentation displays
• HDMI-equipped receivers used for video routing

The receiving display must have a standard HDMI Type-A input.

Power Requirements

The USB-A male power connector requires a stable 5V USB power source within the product’s stated tolerance of 5V ±5%.

Possible power sources include:

• USB wall charger
• Powered USB hub
• Television USB port with sufficient output
• Computer USB port

A USB wall charger is not necessarily included.

The power cable operates the adapter. It is not intended to provide high-speed or fast charging to the connected phone or tablet.

Specifications

Installation

1. Connect the adapter’s HDMI plug to the television, monitor, or projector.
2. Connect the USB-A male power lead to a stable 5V USB power source.
3. Connect the phone, tablet, or computer to the USB-A female port using a compatible data cable.
4. Select the correct HDMI input on the display.
5. Install or open the required EZCast application.
6. Grant any requested USB, screen-recording, or casting permissions.
7. Follow the application instructions to begin screen mirroring.

If the display remains blank, reconnect the power lead and confirm that the source cable supports data transfer rather than charging only.

Important Streaming Limitations

Some subscription video services and other protected applications may block software-based screen mirroring because of DRM or HDCP restrictions.

Possible results include:

• A black video window
• Audio or interface elements without the video
• An application warning
• Reduced playback resolution
• Mirroring being disabled entirely

Compatibility with Netflix, Amazon Prime Video, Disney+, banking applications, or other protected services is not guaranteed.

What This Adapter Does Not Do

• It does not transmit HDMI audio.
• It does not support 4K output.
• It is not a direct USB-C DisplayPort Alt Mode adapter.
• It is not a universal plug-and-play USB graphics card.
• It does not guarantee compatibility with every Android or iOS version.
• It does not bypass DRM or HDCP restrictions.
• It is not intended for low-latency competitive gaming.
• It does not provide device fast charging.
• It does not split video across multiple HDMI displays.
• It does not convert HDMI input back to USB video.

Troubleshooting

If no image appears:

• Confirm that the USB-A power lead is connected.
• Use a stable 5V USB power source.
• Confirm that the source cable supports data transfer.
• Select the correct HDMI input.
• Install or update the EZCast application.
• Grant all required screen-sharing permissions.
• Restart the phone, tablet, or computer.
• Test with a different USB data cable.
• Test the adapter with another HDMI display.
• Reduce the selected output resolution.

If the picture is delayed or unstable:

• Close unnecessary applications.
• Use a direct connection.
• Avoid USB extension cables and unpowered hubs.
• Use the original or a certified data cable for the source device.
• Confirm that the power supply remains stable.

Package Contents

• 1 × UGREEN CM151 50291 USB-to-HDMI Digital AV adapter

A phone data cable, USB wall charger, separate audio cable, and source device are not normally included.

Best For

• Mobile screen mirroring
• Full HD photo display
• Basic presentations
• Classroom demonstrations
• Connecting supported phones to projectors
• Displaying documents and web pages
• Older iOS and Android casting setups
• Situations where native USB-C DisplayPort Alt Mode is unavailable

Why Choose the UGREEN 50291?

• Supports video output up to 1080p@60Hz
• Accepts compatible USB-C, Micro-USB, and Lightning data cables
• Works with selected iOS, Android, Windows, and macOS devices
• Includes an integrated HDMI connector
• Uses a separate USB power connection for stable operation
• Compact aluminum-alloy adapter housing
• Convenient 1.5-meter cable
• Suitable for basic mobile presentations and screen mirroring
