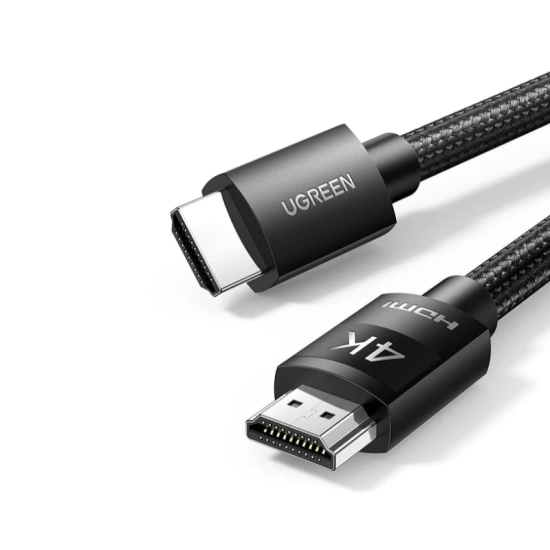

UGREEN HD119 40103 HDMI 2.0 Cable 5M – 18Gbps, 4K@60Hz, 2K@144Hz, HDR, ARC & 3D, Braided Male-to-Male Cable – Black

Description

The UGREEN HD119 40103 is a high-speed 5-meter HDMI 2.0 male-to-male cable designed for gaming, UHD entertainment, presentations and home-theater systems.

It provides bandwidth up to 18Gbps and supports resolutions up to 4K at 60Hz, along with 2K at up to 144Hz and Full HD 1080p. It also supports HDR, Audio Return Channel, 3D video, HDCP 2.2, HDMI Ethernet Channel and multichannel digital audio.

Tin-plated oxygen-free copper conductors, multiple shielding layers and a durable nylon-braided jacket help provide stable audio and video transmission over the 5-meter length.

Key Features

• HDMI 2.0 male-to-male cable
• High-speed bandwidth up to 18Gbps
• Supports 4K at 60Hz
• Supports 2K/1440p at up to 144Hz
• Supports Full HD 1080p
• HDR support
• 3D video support
• Audio Return Channel support
• HDMI Ethernet Channel support
• HDCP 2.2 support
• 48-bit Deep Color support
• Up to 32 audio channels
• Dolby TrueHD support
• DTS-HD audio support
• CEC support
• Mirror and extended-display modes
• Tin-plated oxygen-free copper conductors
• Multiple internal shielding layers
• Nylon-braided cable jacket
• Reinforced strain relief
• Passive, electrically bidirectional cable
• Plug-and-play operation
• Length: 5M / approximately 16.4ft
• Color: Black
• Model/SKU: 40103
• Product series: HD119
• EAN: 6957303841035

4K@60Hz and 2K@144Hz

The UGREEN 40103 supports high-resolution and high-refresh-rate video with compatible source devices and displays.

*Actual resolution, refresh rate, HDR availability and color depth depend on the source device, HDMI output, display input and system settings.

18Gbps HDMI 2.0 Bandwidth

HDMI 2.0 bandwidth up to 18Gbps provides the capacity required for 4K video, high-refresh QHD gaming, HDR content and multichannel digital audio.

This makes the cable suitable for:

• 4K@60Hz movies and streaming
• 2K@144Hz gaming
• Gaming computers
• PlayStation and Xbox consoles
• 4K televisions
• Gaming monitors
• Projectors
• Blu-ray players
• Home-theater systems
• Office and classroom presentations

HDR Support

HDR transmission allows compatible equipment to display enhanced brightness, contrast and color information.

HDR can improve:

• Highlight detail
• Shadow detail
• Color reproduction
• Contrast
• Brightness
• Overall image realism

The source, content and display must all support a compatible HDR format.

Audio Return Channel

ARC allows a compatible television to send audio back to an ARC-enabled soundbar or AV receiver through the same HDMI cable.

ARC requires:

• A compatible television
• An ARC-compatible soundbar or receiver
• Connection through ARC-labelled HDMI ports
• ARC or HDMI-CEC enabled in the device settings

This model supports standard ARC, not HDMI 2.1 eARC.

Digital Multichannel Audio

The UGREEN HD119 carries high-quality digital video and audio through a single cable.

Advertised audio support includes:

• Stereo audio
• Multichannel audio
• Up to 32 audio channels
• Dolby TrueHD
• DTS-HD audio
• Audio Return Channel

The available audio formats depend on the source, content, display and audio equipment.

HDMI Ethernet Channel

HDMI Ethernet Channel allows compatible HDMI devices to share a network connection without requiring a separate Ethernet cable between them.

Both connected devices must support HEC. The cable cannot add Ethernet functionality to equipment that does not support it.

HDCP 2.2 Support

HDCP 2.2 compatibility allows protected UHD content to pass between compatible source and display equipment.

Every component in the connection—including AV receivers, switches and splitters—must support the required HDCP version.

3D Video Support

The cable supports 3D video transmission with compatible:

• Blu-ray players
• Televisions
• Projectors
• Gaming systems
• Graphics cards
• 3D content

Mirror and Extended-Display Modes

When connected between a computer and display, the cable supports display modes provided by the graphics hardware and operating system.

Mirror Mode

Duplicates the computer screen on a television, monitor or projector. This is useful for movies, meetings, presentations and classrooms.

Extended Mode

Uses the HDMI display as additional desktop space. This is useful for multitasking, professional work and productivity.

Durable Braided Construction

The UGREEN 40103 uses tin-plated oxygen-free copper conductors protected by several material layers.

Its construction includes:

• 30AWG conductors
• Tin-plated oxygen-free copper core
• PE insulation
• Aluminium-foil shielding
• Braided internal shielding
• Cotton-yarn reinforcement
• PVC protection
• Nylon-braided exterior
• Reinforced connector strain relief

The cable has an approximate outside diameter of 7mm.

Wide Compatibility

Suitable for HDMI-equipped:

• Desktop computers
• Laptops
• NVIDIA and AMD graphics cards
• PlayStation 5
• PlayStation 4/PS4 Pro
• PlayStation 3
• Xbox Series X|S
• Xbox One
• Xbox 360
• Nintendo Switch dock
• Blu-ray players
• DVD players
• Streaming devices
• Apple TV
• TV boxes
• Set-top boxes
• Satellite receivers
• AV receivers
• Soundbars
• 4K televisions
• Gaming monitors
• Projectors
• Home-theater equipment

The cable supports HDMI standards earlier than HDMI 2.0 but will operate at the limits of the lowest-specification connected device.

Specifications

Backward Compatibility

The UGREEN HD119 is backward compatible with earlier HDMI standards, including:

• HDMI 1.4
• HDMI 1.3
• HDMI 1.2
• HDMI 1.1

When connected to older HDMI equipment, resolution, refresh rate and feature support will be limited to the lowest specification in the connection.

Installation Guidance

1. Measure the complete route before installation.
2. Allow some slack behind both devices.
3. Avoid tight bends, knots and crushing pressure.
4. Connect one end to the HDMI source.
5. Connect the other end to the HDMI display or AV equipment.
6. Select the appropriate HDMI input.
7. Enable enhanced HDMI mode if the display requires it for 4K@60Hz or HDR.
8. Configure the resolution and refresh rate through the source device.
9. Enable ARC and HDMI-CEC if using a compatible soundbar or receiver.

Test the cable at the required resolution before concealing it behind furniture or inside conduit.

Important Compatibility Notes

To achieve 4K@60Hz, the complete connection must support that mode:

Compatible HDMI source → UGREEN 40103 → Compatible HDMI display

Performance can be limited by:

• Source-device HDMI version
• Display HDMI input
• Graphics hardware
• Operating-system settings
• AV receiver or soundbar
• HDMI switch or splitter
• Wall plate or coupler
• HDCP requirements
• HDR and color-depth settings

This is an HDMI 2.0 cable and does not provide HDMI 2.1 features such as:

• 8K@60Hz
• 4K@120Hz
• 48Gbps bandwidth
• eARC
• VRR or ALLM as guaranteed features

Using it with an HDMI 2.1 device will not enable unsupported HDMI 2.1 modes.

Best For

• 4K@60Hz entertainment
• 2K@144Hz gaming
• Gaming PCs
• PlayStation and Xbox consoles
• 4K televisions
• Gaming monitors
• Projectors
• Blu-ray and streaming devices
• Soundbars and AV receivers
• Home-theater systems
• Conference rooms
• Classroom presentations
• Medium-distance HDMI installations

Why Choose the UGREEN HD119 40103?

• HDMI 2.0 performance with bandwidth up to 18Gbps.
• Supports resolutions up to 4K@60Hz.
• Supports high-refresh 2K gaming at up to 144Hz.
• Supports HDR, 3D video and HDCP 2.2.
• Supports ARC and HDMI Ethernet Channel.
• Carries high-quality digital video and multichannel audio.
• Tin-plated oxygen-free copper conductors.
• Multiple shielding layers help reduce interference.
• Durable nylon-braided construction.
• Convenient 5-meter cable length.
• Compatible with televisions, monitors, projectors, computers, consoles and home-theater equipment
