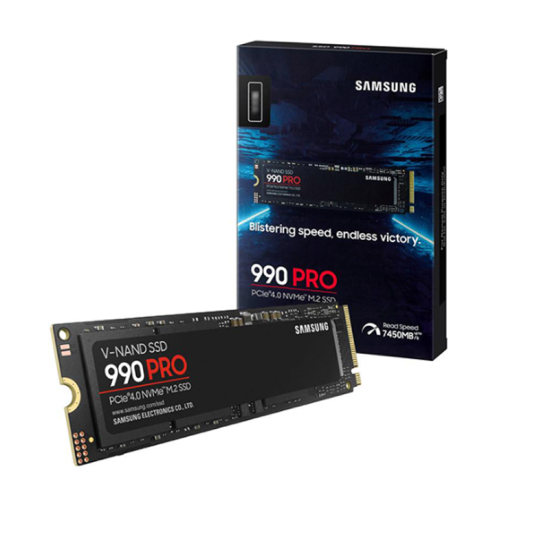

Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 Internal SSD | MZ-V9P2T0B/AM

Description

The Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 Internal SSD (MZ-V9P2T0B/AM) is a flagship high-performance SSD designed for gaming PCs, professional workstations, video editing, heavy graphics workloads, and demanding content creation.

Featuring 2TB of storage capacity, a PCIe Gen4 x4 interface, NVMe 2.0, and a compact M.2 2280 form factor, the Samsung 990 PRO delivers sequential read speeds of up to 7,450 MB/s and sequential write speeds of up to 6,900 MB/s.

With Samsung V-NAND TLC, dedicated DRAM, Intelligent TurboWrite 2.0, and advanced thermal-management technologies, the 990 PRO combines flagship PCIe 4.0 performance with substantial capacity for large game libraries and professional projects.

Key Features

2TB Flagship NVMe Storage

• 2TB storage capacity
• PCIe Gen4 x4 interface
• NVMe 2.0
• M.2 2280 form factor
• Up to 7,450 MB/s sequential read
• Up to 6,900 MB/s sequential write
• Samsung V-NAND TLC
• Samsung in-house controller
• Dedicated LPDDR4 DRAM
• Intelligent TurboWrite 2.0
• Dynamic Thermal Guard
• Microsoft DirectStorage capable on supported systems
• No mechanical moving parts

The 2TB capacity provides substantial high-speed storage for Windows, AAA games, professional applications, high-resolution video, graphics projects, and frequently accessed data.

Up to 7,450 MB/s Read & 6,900 MB/s Write

The Samsung 990 PRO is designed to maximize the performance potential of the PCIe Gen4 interface.

Performance

• Sequential Read: Up to 7,450 MB/s
• Sequential Write: Up to 6,900 MB/s
• Random Read: Up to 1,400,000 IOPS
• Random Write: Up to 1,550,000 IOPS
• Interface: PCIe Gen4 x4
• Protocol: NVMe 2.0

This level of performance makes the SSD suitable for gaming, large file transfers, video editing, professional applications, and other storage-intensive workloads.

Actual performance varies depending on system configuration, workload, firmware, temperature, available cache, and other operating conditions.

PCIe Gen4 x4 Interface

The Samsung 990 PRO connects through a PCI Express Gen4 x4 interface, utilizing four PCIe lanes for high-bandwidth storage communication.

Benefits include:

• Rapid operating-system startup
• Fast application loading
• Reduced game loading times
• High-speed file transfers
• Responsive multitasking
• Faster software installations
• Improved professional workflows

For maximum advertised performance, a compatible PCIe Gen4 x4 M.2 slot is required.

NVMe 2.0 Technology

The Samsung 990 PRO supports the NVMe 2.0 protocol, designed for efficient high-performance communication between the SSD and compatible systems.

NVMe provides:

• High bandwidth
• Low latency
• Fast data access
• Efficient storage communication
• High random performance
• Responsive multitasking
• Optimized SSD operation

Samsung V-NAND TLC

The Samsung 990 PRO uses Samsung V-NAND TLC flash memory to provide high-performance and high-endurance solid-state storage.

Benefits include:

• High read performance
• High write performance
• Low access latency
• Strong endurance
• High storage density
• Silent operation
• No mechanical moving components

TLC NAND makes the 990 PRO particularly well suited for demanding gaming and professional workloads.

Dedicated DRAM Cache

The Samsung 990 PRO features dedicated LPDDR4 DRAM cache, helping the SSD efficiently manage its flash-memory mapping and demanding workloads.

Benefits include:

• Fast metadata access
• Strong random performance
• Responsive multitasking
• Efficient drive management
• High-performance operation
• Improved responsiveness under demanding workloads

This dedicated DRAM is one of the features that distinguishes the 990 PRO from more budget-oriented DRAM-less NVMe SSDs.

Intelligent TurboWrite 2.0

Samsung's Intelligent TurboWrite 2.0 technology uses a high-speed write buffer to accelerate supported write operations.

It can improve performance during:

• Large file transfers
• Game installations
• Application installations
• Software updates
• Video editing
• Content creation
• Large project transfers
• Professional workloads

Sustained write performance can decrease after the available TurboWrite cache is exhausted.

Advanced Heat Control

High-performance PCIe Gen4 SSDs can generate significant heat during intensive workloads, so Samsung incorporates multiple thermal-management technologies into the 990 PRO.

Thermal features include:

• Dynamic Thermal Guard
• Nickel-coated controller
• Heat-spreader label
• Intelligent temperature monitoring
• Thermal throttling protection
• Optimized power efficiency

These technologies help control SSD temperatures and maintain stable operation during demanding workloads.

Note: The MZ-V9P2T0B/AM is the standard 990 PRO model without an integrated heatsink. A motherboard M.2 heatsink can be used where available.

M.2 2280 Form Factor

The Samsung 990 PRO uses the widely adopted M.2 2280 form factor.

Advantages include:

• Compact internal installation
• Direct motherboard connection
• No SATA data cable
• No SATA power cable
• Reduced cable clutter
• Minimal internal space requirements
• Suitable for modern desktops
• Suitable for compatible laptops

Users should verify that their system supports M.2 2280 PCIe NVMe SSDs before installation.

Specifications

• Brand: Samsung
• Series: 990 PRO
• Model / Part Number: MZ-V9P2T0B/AM
• Product Type: Internal NVMe Solid State Drive
• Storage Capacity: 2TB
• Form Factor: M.2 2280
• Interface: PCIe Gen4 x4
• Protocol: NVMe 2.0
• NAND Technology: Samsung V-NAND
• NAND Type: TLC
• Controller: Samsung In-House Controller
• DRAM: Dedicated LPDDR4
• Sequential Read: Up to 7,450 MB/s
• Sequential Write: Up to 6,900 MB/s
• Random Read: Up to 1,400,000 IOPS
• Random Write: Up to 1,550,000 IOPS
• Cache Technology: Intelligent TurboWrite 2.0
• Thermal Management: Dynamic Thermal Guard
• TRIM Support: Yes
• S.M.A.R.T. Support: Yes
• Hardware Encryption: AES 256-bit
• Integrated Heatsink: No
• Installation Type: Internal
• Moving Parts: None

2TB Storage Capacity

The large 2TB capacity provides substantial storage for demanding gaming and professional workloads.

It can store:

• Windows
• AAA games
• Large game libraries
• Professional applications
• Productivity software
• High-resolution photos
• 4K video projects
• Graphics assets
• Creative projects
• Music libraries
• Large project files
• Frequently accessed data

Actual usable formatted capacity will be lower than the advertised 2TB.

High-End Gaming Performance

The Samsung 990 PRO 2TB is particularly suitable for high-performance gaming PCs.

Gaming benefits include:

• Extremely fast game loading
• Rapid game startup
• Faster installations
• Quick game updates
• High-speed game-file access
• Responsive system performance
• 2TB capacity for large game libraries
• PCIe Gen4 performance

Its large capacity makes it particularly attractive for modern AAA games that can require significant storage space.

Microsoft DirectStorage

The Samsung 990 PRO can be used with Microsoft DirectStorage on compatible Windows systems.

DirectStorage is designed to allow supported games to take better advantage of high-performance NVMe SSDs by improving the efficiency of asset loading.

Potential benefits in supported games and systems include:

• Faster asset streaming
• Reduced storage-related loading bottlenecks
• Better utilization of NVMe performance
• Improved loading efficiency

Actual benefits depend on the game, operating system, GPU, CPU, drivers, and overall system configuration.

Video Editing & Heavy Graphics

The combination of 2TB capacity and high PCIe Gen4 transfer speeds makes the 990 PRO suitable for demanding creative workloads.

Potential applications include:

• 4K video editing
• High-resolution photography
• Graphic design
• Motion graphics
• 3D applications
• Large texture libraries
• Audio production
• Software development
• Large project files
• Professional media workflows

The 2TB capacity provides considerably more working space than lower-capacity drives for large creative projects.

Samsung Magician Software

The Samsung 990 PRO supports Samsung Magician SSD management software.

Samsung Magician provides tools for:

• Drive health monitoring
• Performance benchmarking
• Firmware updates
• Diagnostic scans
• Performance optimization
• Security management
• SSD maintenance

Keeping SSD firmware updated is recommended for performance, compatibility, and reliability.

Reliability & Endurance

The Samsung 990 PRO 2TB is rated for up to 1,200 TBW (Terabytes Written).

Reliability features include:

• Samsung V-NAND TLC
• Samsung controller technology
• Dedicated DRAM
• Dynamic Thermal Guard
• S.M.A.R.T. monitoring
• TRIM support
• Solid-state construction
• No mechanical moving components

Actual drive lifespan depends on workload, temperature, usage patterns, and total data written.

Data Security

The Samsung 990 PRO includes hardware-based security capabilities.

Features include:

• AES 256-bit hardware encryption
• TCG/Opal support
• IEEE1667 support
• S.M.A.R.T. monitoring
• TRIM support

Availability and configuration of security features depend on the operating system and hardware platform.

Primary or Secondary Storage

The Samsung 990 PRO 2TB can serve multiple roles in a high-performance PC.

Primary Drive

Suitable for:

• Windows
• Applications
• Games
• Creative software
• Professional applications
• Frequently accessed data

Secondary Drive

Excellent for:

• Large game libraries
• Video-editing projects
• Graphics assets
• High-resolution media
• Professional project files
• High-speed data storage

Best For

• High-End Gaming PCs
• PCIe Gen4 Systems
• Large AAA Game Libraries
• Windows Boot Drive
• Microsoft DirectStorage Gaming
• 4K Video Editing
• Heavy Graphics Workloads
• Content Creation
• Professional Workstations
• Large File Transfers
• Primary or Secondary High-Speed Storage

Why Choose the Samsung 990 PRO 2TB?

• 2TB storage capacity provides substantial room for large game libraries, professional applications, multimedia, and creative projects.
• Up to 7,450 MB/s sequential read speed delivers flagship-class PCIe Gen4 storage performance.
• Up to 6,900 MB/s sequential write speed supports demanding transfers and professional workloads.
• Up to 1,400,000 random read IOPS provides extremely responsive data access.
• Up to 1,550,000 random write IOPS provides strong performance for intensive workloads.
• PCIe Gen4 x4 connectivity delivers high bandwidth for modern gaming and professional systems.
• NVMe 2.0 provides efficient high-performance storage communication.
• Samsung V-NAND TLC combines high performance with strong endurance.
• Dedicated LPDDR4 DRAM helps provide responsive and consistent storage performance.
• Intelligent TurboWrite 2.0 accelerates supported write workloads.
• Dynamic Thermal Guard helps manage operating temperatures during intensive use.
• DirectStorage support on compatible systems makes it suitable for modern gaming platforms.
• M.2 2280 form factor provides compact, cable-free installation.
• Samsung Magician support provides firmware updates, diagnostics, monitoring, and optimization.
• 1,200 TBW endurance rating provides strong durability for demanding gaming and professional workloads.
• The combination of 2TB capacity, up to 7,450/6,900 MB/s read/write performance, PCIe Gen4 x4, NVMe 2.0, Samsung V-NAND TLC, dedicated DRAM, Intelligent TurboWrite 2.0, and advanced thermal management makes the Samsung 990 PRO 2TB (MZ-V9P2T0B/AM) an excellent flagship storage solution for high-performance gaming PCs and professional workstations.
