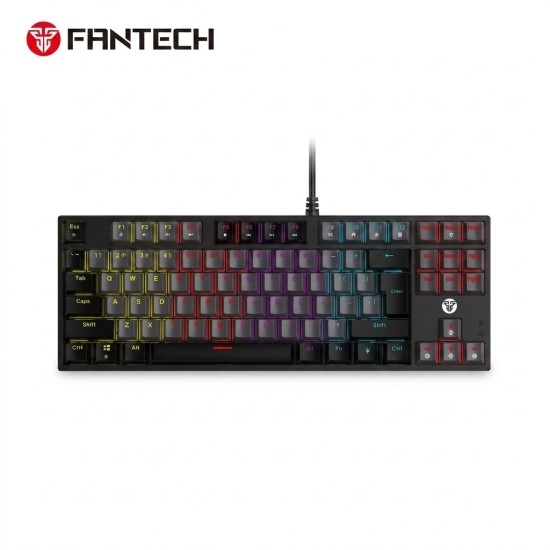

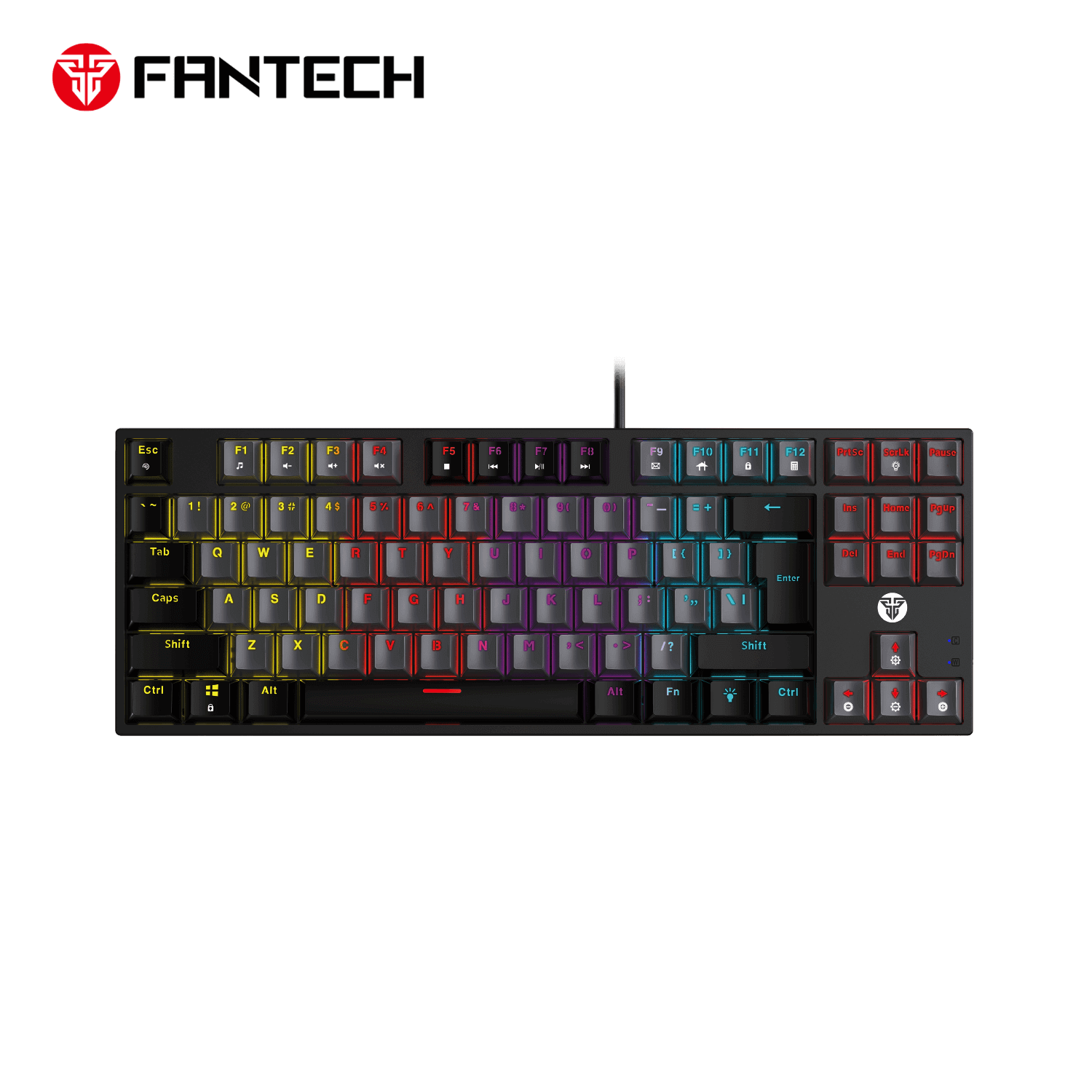

FANTECH ATOM MK876 V2 TKL RGB Mechanical Gaming Keyboard – Blue Switch, Black

Description

The FANTECH ATOM MK876 V2 is a compact tenkeyless mechanical gaming keyboard designed for gaming, typing, study, and everyday computer use.

Its 87-key TKL layout removes the numeric keypad while retaining the function row, dedicated arrow keys, and navigation cluster. This provides additional mouse space without requiring the extensive FN-layer controls associated with smaller 60% keyboards.

This Blue Switch version provides tactile feedback and an audible click with each keypress. The V2 revision also features 3-pin hot-swappable switch sockets, Spectrum RGB lighting with multiple effects, double-injection keycaps, 25-key anti-ghosting, multimedia shortcuts, adjustable feet, and a detachable USB-C connection.

Key Features

• 87-key tenkeyless layout
• Mechanical Blue switches
• Tactile and clicky key response
• Switch lifespan rated up to 50 million presses
• 3-pin hot-swappable switch sockets
• Spectrum RGB illumination
• Approximately 13 lighting effects
• Adjustable lighting brightness and speed
• 25-key anti-ghosting
• Double-injection keycaps
• Dedicated function row
• Dedicated arrow keys
• Navigation-key cluster
• FN multimedia controls
• Windows-key lock
• Adjustable keyboard feet
• Detachable USB-C cable
• Plug-and-play USB operation
• Windows and macOS compatibility
• Wired connection
• English QWERTY layout
• Model: MK876 V2
• Color: Black

Compact TKL Layout

The ATOM MK876 V2 uses an 87-key tenkeyless layout, sometimes described as an 80% keyboard.

It retains:

• Main alphanumeric keys
• F1–F12 function row
• Dedicated arrow keys
• Delete, Home, End, Insert, Page Up and Page Down
• Print Screen, Scroll Lock and Pause
• FN multimedia functions

It removes the dedicated numeric keypad found on a full-size keyboard. This reduces its width and gives the user more space for broad mouse movements.

The layout is particularly suitable for:

• FPS gaming
• Small desks
• Students
• Office and home use
• Users who want dedicated arrow keys
• Players who do not frequently use a numeric keypad

Mechanical Blue Switches

This version is equipped with mechanical Blue switches that provide a tactile bump and audible click during actuation.

Blue switches are particularly suitable for:

• Typing
• Programming
• Users who enjoy clear feedback
• Strategy and casual gaming
• Environments where audible keystrokes are acceptable

They are significantly louder than Red linear switches. For bedrooms, offices, streaming microphones, libraries, or shared spaces, the sound level should be considered before purchase.

Fantech rates the switch mechanism for approximately 50 million keypresses.

3-Pin Hot-Swappable Switches

The MK876 V2 features 3-pin hot-swap sockets, allowing compatible mechanical switches to be replaced without soldering.

Compatible options can include suitable 3-pin MX-style:

• Linear switches
• Tactile switches
• Clicky switches

Five-pin switches may require the two additional plastic locating legs to be clipped before installation. Optical, low-profile, Hall-effect, and other electrically incompatible switches will not work simply because their shape appears similar.

For safe replacement:

1. Disconnect the keyboard from USB.
2. Remove the keycap with a keycap puller.
3. Remove the switch vertically using a switch puller.
4. Check that the replacement switch’s metal pins are straight.
5. Align the switch with the socket.
6. Press gently without forcing it.
7. Reinstall the keycap and test the key.

The hot-swap feature applies to switches, not only keycaps. This is an important distinction between the MK876 V2 and some earlier regional MK876 listings that were described as non-replaceable.

Spectrum RGB Lighting

The keyboard offers Spectrum RGB backlighting with approximately 13 preset lighting effects.

Available controls include:

• RGB on/off
• Lighting-effect selection
• Brightness adjustment
• Animation-speed adjustment
• Effect-direction control on supported modes
• Color selection on compatible effects

Common lighting shortcuts include:

• FN + Scroll Lock – RGB on or off
• FN + Up Arrow – Increase brightness
• FN + Down Arrow – Reduce brightness
• FN + Right Arrow – Increase effect speed
• FN + Left Arrow – Reduce effect speed
• FN + Esc – Reset lighting

Exact shortcuts should be confirmed from the supplied manual because regional keyboard revisions can use slightly different combinations.

The MK876 V2 is primarily designed around onboard lighting controls. Fantech’s current keyboard download page lists a manual for the MK876 V2 but does not list dedicated configuration software for it.

25-Key Anti-Ghosting

The keyboard supports anti-ghosting across 25 commonly used gaming keys. This helps ensure that important simultaneous commands register correctly during play.

Suitable combinations include actions such as:

• Moving while sprinting
• Jumping and changing weapons
• Holding modifiers while pressing ability keys
• Executing several movement and combat inputs together

This specification is 25-key anti-ghosting, not full-key NKRO. Key combinations outside the protected gaming-key group may have lower simultaneous-key limits.

Double-Injection Keycaps

The included keycaps use double-injection construction. Their legends are formed from a separate layer of plastic instead of being surface-printed.

Benefits include:

• Legends that resist fading
• Improved durability
• Clear RGB light transmission
• Better resistance to everyday wear

The keycaps are generally ABS-based. Double injection improves legend durability but does not mean that the keycaps are PBT.

Multimedia Shortcuts

FN shortcuts provide quick access to common computer and media functions, including:

• Media player
• Volume down
• Volume up
• Mute
• Stop
• Previous track
• Play and pause
• Next track
• Email
• Default web browser
• Calculator
• Windows-key lock

Function availability depends on the connected operating system. Some shortcuts may behave differently on macOS or Linux.

Windows-Key Lock

The Windows-key lock prevents accidental activation of the Start menu during gaming.

This is useful when pressing nearby movement or modifier keys during fast-paced gameplay.

Detachable USB-C Connection

The keyboard uses a detachable USB cable with USB-C at the keyboard end and USB-A for connection to a computer.

Advantages include:

• Easier transportation
• Convenient cable replacement
• Simpler desk routing
• Reduced risk of cable damage during storage
• Reliable wired gaming performance

The keyboard is wired-only. It does not include Bluetooth, 2.4GHz wireless, or an internal rechargeable battery.

Plug-and-Play Operation

The MK876 V2 works as a standard USB keyboard and does not require driver installation for basic typing, gaming, or onboard RGB control.

Connect the USB-C end to the keyboard and the USB-A end to a powered computer port. The operating system should detect it automatically.

Specifications

The 87-key layout, 25-key anti-ghosting, dimensions and weight are documented in the MK876 V2 installation guide. The hot-swap specification and Blue Switch configuration are also listed by the Egyptian retailer for this exact V2 product.

Compatibility

Computers

Suitable for compatible:

• Windows 11
• Windows 10
• Windows 8
• Windows 7
• Windows XP
• macOS
• Linux computers
• Desktop PCs
• Gaming laptops

Basic keyboard and lighting functions are hardware-controlled. Some multimedia shortcuts may be Windows-specific.

Gaming Consoles

The keyboard may provide basic USB input on:

• PlayStation 5
• PlayStation 4
• Xbox Series X
• Xbox Series S
• Xbox One

Console and game support varies. Connecting a keyboard does not add keyboard controls to games that only support controllers.

USB-C Devices

A suitable USB-C data adapter or USB-C-to-USB-C data cable may allow operation with compatible tablets and other devices. Compatibility depends on the device supporting a standard USB keyboard and providing sufficient power.

Expected Package Contents

• FANTECH ATOM MK876 V2 keyboard
• Detachable USB-C-to-USB-A cable
• Keycap puller
• User manual

A switch puller or spare switches may be included in certain regional packages but should not be promised unless physically confirmed.

Important Notes

• This listing is for the Blue clicky-switch version.
• Blue switches produce an intentionally loud clicking sound.
• The keyboard uses an English QWERTY layout.
• It does not include a numeric keypad.
• It is wired-only and has no Bluetooth or 2.4GHz connection.
• The V2 revision uses 3-pin hot-swappable sockets.
• Five-pin switches require modification before fitting into 3-pin sockets.
• Optical and Hall-effect switches are not compatible.
• Disconnect the keyboard before changing switches.
• Anti-ghosting is limited to 25 designated keys; it is not full-key NKRO.
• RGB lighting uses onboard controls rather than advanced desktop software.
• A wrist rest is not included.
• Water or spill resistance is not specified.
• Dimensions and accessories can vary slightly by regional revision.

Best For

• Gamers wanting a budget mechanical keyboard
• FPS players needing additional mouse space
• Typists who enjoy tactile and audible feedback
• Students
• Programming
• Compact gaming desks
• First-time mechanical-keyboard users
• Users interested in changing switches
• RGB gaming setups
• Windows and macOS computers

Why Choose the FANTECH ATOM MK876 V2?

• Compact 87-key TKL layout
• Dedicated arrow and function keys
• Mechanical Blue clicky switches
• 3-pin hot-swappable sockets
• Approximately 13 RGB lighting effects
• Durable double-injection keycaps
• 25-key gaming anti-ghosting
• Convenient multimedia shortcuts
• Windows-key lock
• Detachable USB-C cable
• Adjustable typing feet
• Plug-and-play operation
• Affordable entry into customizable mechanical keyboards
